Microscope

XJF900

Your position ：Home >Microscope >Fluorescence microscope >XJF >XJF900

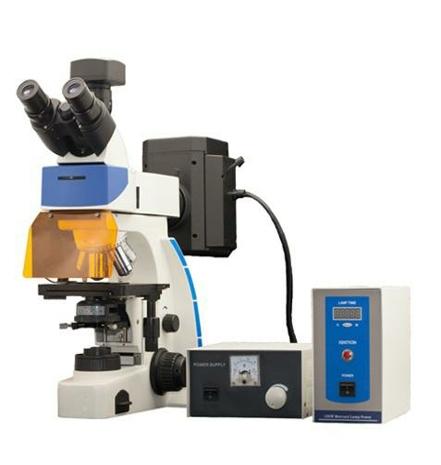

XJF900

Infinity color corrected optical system with high quality micro-technique presents super excellent micro-image at any observation. Wide-field high eye-point eyepieces and plan /achromatic objectives make the effect of observation more perfect. Anti-Fungus Optical System. Outstanding appearance design and ergonomics structure design long time use without feeling tired. With the design of security lock and safe limits it is much more secure stab- le. and can be kept for long. Various microscopic examinations can be fulfilled such as bright-field dark-field phase contrast fluorescence simple polarizing and so on.

Specification		XJF900B	XJF900T
Optical System	Infinity Optical System F=200mm	●	●
Viewing Head	Seidentopf Binocular Head, 30°inclined (52-75mm), 360° rotatable, diopter adjustable.	●
	Seidentopf Trinocular Head, 30°inclined (52-75mm) Trinocular light is split 20/80, diopter adjustable.		●
	Seidentopf Binocular Head, 30°inclined (48-75mm), 360° rotatable, diopter adjustable.	○
	Seidentopf Trinocular Head, 30°inclined (48-75mm) Trinocular light is split 20/80, diopter adjustable.		○
Eyepiece	WF10X/20, High eye-point up to 21mm	●	●
	WF10X/22, High eye-point up to 21mm	○	○
	WF16X/13	○	○
	WF10X/20(point) High eye-point up to 21mm	○	○
	WF10X/22(point) High eye-point up to 21mm	○	○
	Reticule Eyepiece, Cross WF10X/20	○	○
Fluorescence Attachment	Reflected Fluorescence Illuminator	●	●
	UV Shield	●	●
	100W Mercury Lamp House	●	●
	100W Mercury Lamp Power House	●	●
	100W Osram Mercury Lamp	●	●
	B Excitation Filter (chroma)	●	●
	G Excitation Filter (chroma)	●	●
	UV Excitation Filter (chroma)	○	○
	V Excitation Filter ((chroma)	○	○
Polarization	Analyzer	○	○
Polarization	Polarizer	○	○
Nosepiece	Quadruple	●	●
Nosepiece	Quintuple	○	○
Objective	Plan Achromatic 4X/0.10, WD=12.31mm	●	●
	Plan Achromatic 10X/0.25, WD=5.03mm	●	●
	Plan Achromatic 40X/0.65(S), WD=0.72mm	●	●
	Plan Achromatic 100X/1.25 (S,O), WD=0.17mm	●	●
	Plan Achromatic 2X/0.06, WD=3.55mm (Need Swing-out Condenser)	○	○
	Plan Achromatic 20X/0.40, WD=2.71mm	○	○
	Plan Achromatic 60X/0.80(S), WD=0.69mm	○	○
Phase Contrast Unit (positive or negative)	Centering Telescope	○	○
	PH Plan Achromatic 10X/0.25, WD=5.03mm	○	○
	PH Plan Achromatic 20X/0.40, WD=2.71mm	○	○
	PH Plan Achromatic 40X/0.65, WD=0.72mm	○	○
	PH Plan Achromatic 60X/0.80, WD=0.69mm	○	○
	PH Plan Achromatic 100X/1.25(S,O), WD=0.17mm	○	○
	Multi-Purpose Phase Contrast Condenser 10x-100x	○	○
	Multi-purpose Phase contrast Condenser 10x-100x With dark field 10x-40x	○	○
	Phase-Contrast Slide 10X	○	○
	Phase-Contrast Slide 20X	○	○
	Phase-Contrast Slide 40X/60X/100X	○	○
Stage	Double layers mechanical stage Stage size: 156mm × 138mm Moving range: 76mm × 54mm	●	●
Stage	Rackless Mechanical Stage, right handed Stage size: 185mm × 177mm Moving range: 75mm × 50mm	○	○
Condenser	Abbe condenser: NA=1.25, with iris diaphragm	●	●
	Swing out Condenser	○	○
	Simplified darkfield slide	○	○
	Darkfield Condenser (Oil)	○	○
	Darkfield Condenser (Dry)	○	○
Filter	Blue(φ38)	●	●
	Green(φ38)	○	○
	Yellow(φ38)	○	○
	Frosted glass(φ38)	○	○
Focus System	Coaxial coarse and fine focusing knob, height adjustable.	●	●
Illumination	Kohler Illuminator With field diaphragm	●	●
	6V20W Osram Halogen lamp, Adjustable brightness	●	●
	6V30W Osram Halogen lamp, Adjustable brightness	○	○
	3W LED Lamp, Adjustable brightness	○	○
C-Mount	1X C-Mount		●
	0.5X C-Mount		○
	0.25X C-Mount		○

Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.

Pack: 1 carton, G.W.: 20KGS, Meas.: 68*48.5*48CM
