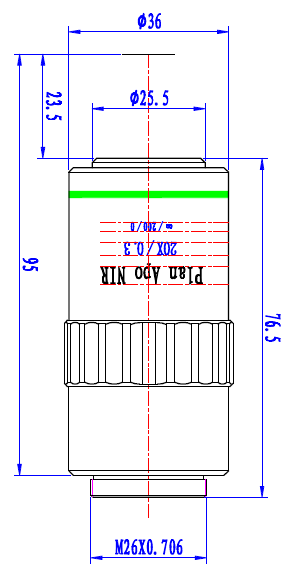

Infinity 95MM (Plan NIR APO) f′=200mm（Tube lens）NIR Objective Wave Range: 400nm-1800nm
This set NIR objective is with wave range to 1800nm, only supplier in China. The objective with high transmission rate, share image, specifically in using in lase and semiconductor and so on field.
放大倍數(shù) Magnification | 規(guī)格型號 Model | 數(shù)值孔徑 NA | 工作距離 WD(mm) | 焦距 f’ (mm) | 分辨率 R (μm) | 焦深 DF (μm) | 物方視場 on object (mm) | 像方視場 on image (mm) | 螺紋尺寸 Screw |
20x | NIR-20X | 0.30 | 23.3 | 10 | 2.16 | 7.2 | 1.3 | 26.0 | M26 |
